A lithium-ion battery is comprised of four main components – cathode, anode, separator, and electrolyte. In a working battery, lithium ions flow from the anode to the cathode during discharge. The lithium-ions flow in the reverse direction during recharging. Each individual battery cell outputs only a limited amount of energy and is often combined with other cells to form battery packs. Battery packs can in turn be combined to form battery modules for energy storage applications that require higher amounts of energy output such as electric vehicles and grid storage. The materials comprising the cathode, anode, separator, and electrolyte together help define a battery’s six primary performance characteristics – run time, safety, cycle life, power, energy density, and costs.

A key aspect of selecting the best materials for each part of the battery to optimize the six primary performance characteristics depends on advanced analytical characterization. One of the most critical parameters in material selection is thermal tolerance because the materials comprising a working battery must work within a temperature range of -20 °C to 60 °C. The analytical technique known as thermal analysis is ideal for testing thermal tolerances and stability of battery materials.  With thermal analysis, it’s possible to obtain such thermal parameters as the decomposition temperature, chemical composition, degree of oxidation, solvent composition, melting temperature, glass transition, and thermal stability. When thermal analysis is combined with mechanical testing, it’s possible to understand dimensional stability of a polymer’s length and shape, e.g., the polymer separator. This thermal and dimensional insight can help prevent separator failure and ensure battery safety.  Finally, when it comes to putting all the materials together during manufacturing, it often requires working with slurries of solid particles, binders, and solvents.  At this stage, rheology provides insights into battery slurries at each manufacturing stage including storage, mixing, coating, and drying. A rheological profile measurement can help ensure a uniform, defect-free coating that leads to production of consistent, high-quality electrodes with high batch-to-batch repeatability and low scrap rates. Putting this all together means that advanced analytical characterization of the materials comprising the main battery components for thermal, rheological, calorimetric, and mechanical properties can lead to better performing and safer batteries.

Resources

Contact Us

Battery Components

Lithium-ion batteries typically operate at temperatures of -20 °C to 60 °C. Thermal analysis enables researchers and engineers to understand the thermal stability (melting, decomposition, slurry drying) of cathode and binder materials for safer and longer lasting batteries across all operational temperatures.

Manufacturing cathodes involves slurries of cathodes and binders. Rheology enables engineers to produce consistent slurry viscosities that result in uniform coatings for high performing and safer batteries.

Material: Active material
Material Examples: LiFePO4 (LFP), LiNiMnCoO2 (NMC), LiNi0.5Mn1.5O4 (LNMO), LiNiCoAlO2 (NCA), LiMn2O4 (LMO), LiCoO2 (LCO)

Instruments & Test Parameters
Discovery DSC

Phase transition

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)

Heat capacity

Discovery SDT
Thermal Stability

  • Decomposition temperature

Composition determination

Phase transition

  • Melting temperature (Tm)
  • Heat of fusion
Discovery TGA
Thermal stability

  • Decomposition temperature

Composition determination

Slurry drying

  • Drying temperature
  • Drying kinetics

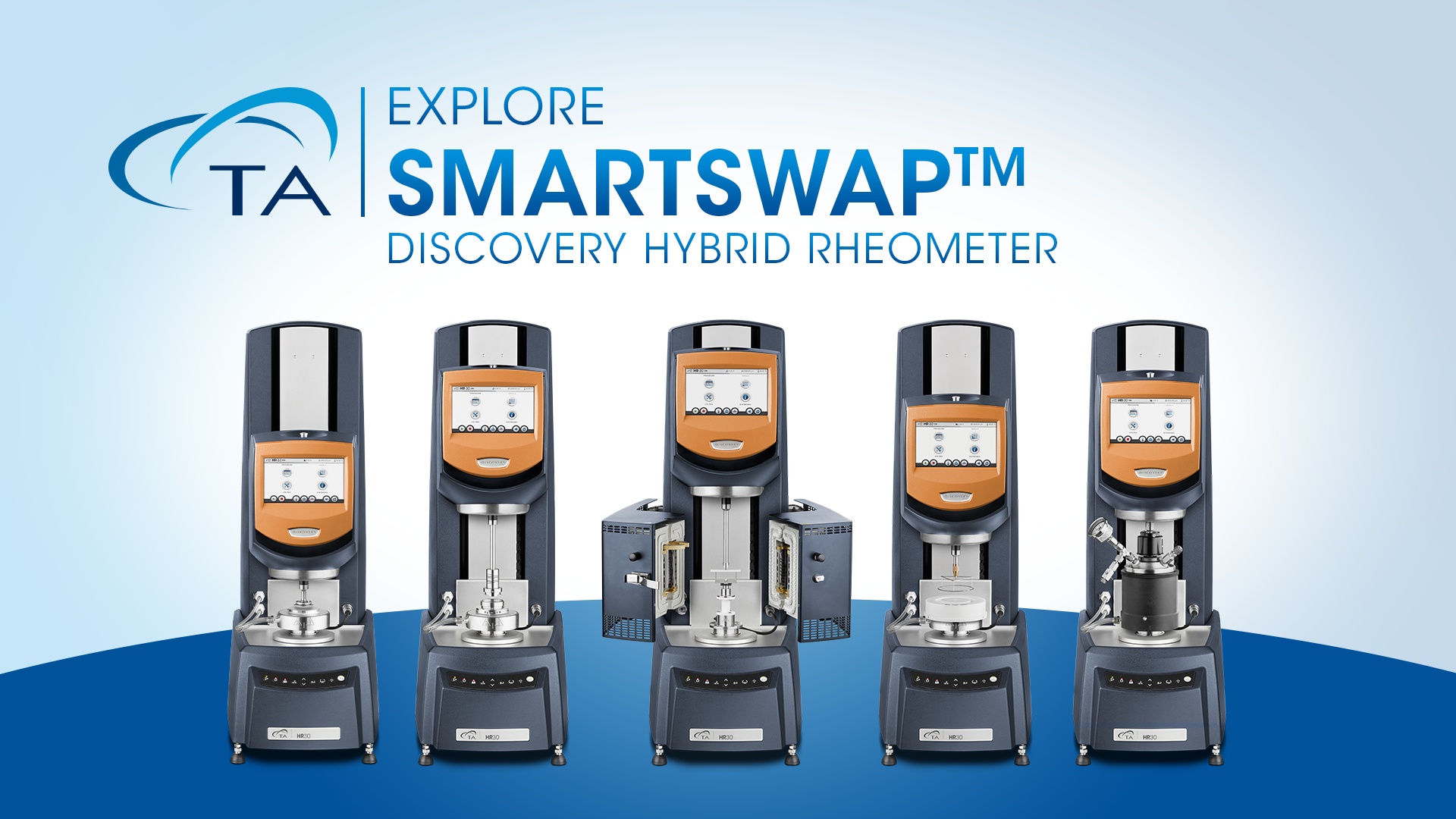

Discovery Hybrid Rheometer
Mixing for slurry formation

  • Viscosity (shear thinning index)

Slurry storage with minimal settling / aggregation

  • Viscosity (zero shear viscosity)
  • Viscoelasticity

Pumpability, transport of slurry

  • Yield stress
  • Viscoelasticity

Electrode coating

  • Viscosity (shear thinning index)
  • Thixotropy

Optimization of coat weight / coat thickness

  • Viscosity (thixotropy)
Material: Binder
Material Examples: Polyvinylidene Fluoride (PVDF)

Instruments & Test Parameters
Discovery DSC

Quality control

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)
Discovery TGA
Thermal Stability

  • Decomposition temperature
A battery separator allows lithium-ions to move between the cathode and anode while preventing short-circuits. Thermal analysis enables researchers and engineers to develop separators that resist melting, decomposition, or becoming brittle. Within thermal analysis, thermal mechanical analyzers (TMA) and dynamic mechanical analyzers (DMA) provide insight into mechanical stability and longevity of the separator.
Material: Polymer membrane
Material Examples: Polypropylene (PP), Polyethylene (PE), Multilayer separator, Ceramic-coated separator

Instruments & Test Parameters
Discovery DSC

Quality control

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)

Phase transition

Discovery TMA

Mechanical stability

  • Thermal expansion and shrinkage

Separator safety

  • Meltdown temperature
Mechanical Test Load Frames
Material strength

  • Young’s modulus, yield strength, ultimate strength,
    elongation at break
  • Strength vs. temperature
Discovery TGA
Thermal stability

  • Decomposition temperature

Composition determination

Discovery DMA
Safety and longevity

  • Storage modulus
  • Glass transition (Tg)

Batch-to-batch repeatability

  • Glass transition (Tg)
  • Storage modulus, loss modulus, tan delta

Characterization of mechanical anisotropy

  • Storage modulus, loss modulus, tan delta

Electrolytes possess high conductivity, perform well at low temperatures, and have good electrochemical stability. Thermal analysis enables researchers and engineers to understand electrolytes’ thermal stability to avoid degradation and potential fires.

Rheology enables engineers to produce electrolyte solvents with optimal pumpability during manufacturing and understand the effect of charge/discharge cycles during battery development.

Material: Nonaqueous solvents
Material Examples: Carbonates and electrolytic solutions, Lithium hexafluorophosphate (LiPF6)

Instruments & Test Parameters
APCG & LCMS

Molecular degradation of electrolytes and additives

Discovery DSC
Electrolyte formulation

  • Melting
  • Crystallization

Thermal stability

  • Thermal runaway temperature
  • Heat of reaction
Discovery TGA
Thermal stability

  • Decomposition temperature

Composition determination

Discovery Hybrid Rheometer
Pumpability, transport

  • Yield stress
  • Viscosity (newtonian, shear thinning, shear thickening)
  • Viscoelasticity

Effect of charge-discharge cycles on conductivity

  • Viscosity
  • Electro-rheology

Lithium-ion batteries typically operate at temperatures of -20 °C to 60 °C. Thermal analysis enables researchers and engineers to understand the thermal stability of graphite and binder materials (decomposition, compositional determination, solvent drying) for safer and longer lasting batteries.

Manufacturing anodes involve slurries of graphite and binders. Rheology enables engineers to produce consistent slurry viscosities that result in uniform coatings leading to high performing and safer batteries.

Material: Active material
Material Examples: Graphene, Graphite, Silicone

Instruments & Test Parameters
Discovery DSC

Reduction of graphene oxide

Heat capacity

Discovery SDT
Decomposition analysis

Reduction of graphene oxide

Evolved gas analysis, TGA-MS, TGA-FTIR, TGA-GCMS

Discovery TGA
Decomposition analysis

Composition determination

Slurry drying

  • Drying temperature
  • Drying kinetics
Discovery Hybrid Rheometer
Mixing for slurry formation

  • Viscosity (shear thinning index)

Slurry storage with minimal settling / aggregation

  • Viscosity (zero shear viscosity)
  • Viscoelasticity

Pumpability, transport of slurry

  • Yield stress
  • Viscoelasticity

Electrode coating

  • Viscosity (shear thinning index)
  • Thixotropy

Optimization of coat weight / coat thickness

  • Viscosity (thixotropy)
Material: Binder/Additive
Material Examples: Carboxymethyl Cellulose (CMC), Styrene-Butadiene Rubber (SBR)

Instruments & Test Parameters
Discovery DSC

Quality control

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)
Discovery TGA

Thermal stability

  • Decomposition temperature

Composition determination

  • Binder/additive contents
Calendar life and cycle-life of lithium-ion battery cells can depend on secondary reactions occurring between the electrodes and within the electrolyte. Isothermal microcalorimetry enables researchers to gain understanding of secondary reactions by measuring very small heat flow for safer and longer-lasting batteries.
Material: Whole Cell

Instruments & Test Parameters
Isothermal Microcalorimetry (IMC)

Cell performance ranking

Lifetime prediction

Heat management

Phase change and first cycle reactions

Battery casings must withstand a wide range of temperatures during normal operation. Thermal gravimetric analysis (TGA) provides insights into thermal stability (degradation, oxidation) and dynamic mechanical analyzers (DMA) deliver insight into material mechanical properties.
Material: Polymer or metal

Instruments & Test Parameters
Discovery TGA

Thermal stability

  • Degradation temperature
  • Oxidation (metal)
Mechanical Test Load Frames

Material strength

  • Young’s modulus, yield strength, ultimate strength, elongation at break
  • Fatigue and durability, S-N curves
  • Strength vs. temperature

Final assembly strength

  • Flexural, bending or crush failure points
  • Fatigue and durability, S-N curves
  • Strength vs temperature
Discovery DMA

Mechanical properties of materials

  • Storage modulus, loss modulus, tan delta
  • Glass transition (Tg)

Batch-to-batch material repeatability

  • Glass transition (Tg)
  • Storage modulus, loss modulus, tan delta

Characterization of mechanical anisotropy

  • Storage modulus, loss modulus, tan delta

Cathode

Lithium-ion batteries typically operate at temperatures of -20 °C to 60 °C. Thermal analysis enables researchers and engineers to understand the thermal stability (melting, decomposition, slurry drying) of cathode and binder materials for safer and longer lasting batteries across all operational temperatures.

Manufacturing cathodes involves slurries of cathodes and binders. Rheology enables engineers to produce consistent slurry viscosities that result in uniform coatings for high performing and safer batteries.

Material: Active material
Material Examples: LiFePO4 (LFP), LiNiMnCoO2 (NMC), LiNi0.5Mn1.5O4 (LNMO), LiNiCoAlO2 (NCA), LiMn2O4 (LMO), LiCoO2 (LCO)

Instruments & Test Parameters
Discovery DSC

Phase transition

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)

Heat capacity

Discovery SDT
Thermal Stability

  • Decomposition temperature

Composition determination

Phase transition

  • Melting temperature (Tm)
  • Heat of fusion
Discovery TGA
Thermal stability

  • Decomposition temperature

Composition determination

Slurry drying

  • Drying temperature
  • Drying kinetics
Discovery Hybrid Rheometer
Mixing for slurry formation

  • Viscosity (shear thinning index)

Slurry storage with minimal settling / aggregation

  • Viscosity (zero shear viscosity)
  • Viscoelasticity

Pumpability, transport of slurry

  • Yield stress
  • Viscoelasticity

Electrode coating

  • Viscosity (shear thinning index)
  • Thixotropy

Optimization of coat weight / coat thickness

  • Viscosity (thixotropy)
Material: Binder
Material Examples: Polyvinylidene Fluoride (PVDF)

Instruments & Test Parameters
Discovery DSC

Quality control

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)
Discovery TGA
Thermal Stability

  • Decomposition temperature
Separator
A battery separator allows lithium-ions to move between the cathode and anode while preventing short-circuits. Thermal analysis enables researchers and engineers to develop separators that resist melting, decomposition, or becoming brittle. Within thermal analysis, thermal mechanical analyzers (TMA) and dynamic mechanical analyzers (DMA) provide insight into mechanical stability and longevity of the separator.
Material: Polymer membrane
Material Examples: Polypropylene (PP), Polyethylene (PE), Multilayer separator, Ceramic-coated separator

Instruments & Test Parameters
Discovery DSC

Quality control

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)

Phase transition

Discovery TMA

Mechanical stability

  • Thermal expansion and shrinkage

Separator safety

  • Meltdown temperature
Mechanical Test Load Frames
Material strength

  • Young’s modulus, yield strength, ultimate strength,
    elongation at break
  • Strength vs. temperature
Discovery TGA
Thermal stability

  • Decomposition temperature

Composition determination

Discovery DMA
Safety and longevity

  • Storage modulus
  • Glass transition (Tg)

Batch-to-batch repeatability

  • Glass transition (Tg)
  • Storage modulus, loss modulus, tan delta

Characterization of mechanical anisotropy

  • Storage modulus, loss modulus, tan delta
Electrolyte

Electrolytes possess high conductivity, perform well at low temperatures, and have good electrochemical stability. Thermal analysis enables researchers and engineers to understand electrolytes’ thermal stability to avoid degradation and potential fires.

Rheology enables engineers to produce electrolyte solvents with optimal pumpability during manufacturing and understand the effect of charge/discharge cycles during battery development.

Material: Nonaqueous solvents
Material Examples: Carbonates and electrolytic solutions, Lithium hexafluorophosphate (LiPF6)

Instruments & Test Parameters
APCG & LCMS

Molecular degradation of electrolytes and additives

Discovery DSC
Electrolyte formulation

  • Melting
  • Crystallization

Thermal stability

  • Thermal runaway temperature
  • Heat of reaction
Discovery TGA
Thermal stability

  • Decomposition temperature

Composition determination

Discovery Hybrid Rheometer
Pumpability, transport

  • Yield stress
  • Viscosity (newtonian, shear thinning, shear thickening)
  • Viscoelasticity

Effect of charge-discharge cycles on conductivity

  • Viscosity
  • Electro-rheology
Anode

Lithium-ion batteries typically operate at temperatures of -20 °C to 60 °C. Thermal analysis enables researchers and engineers to understand the thermal stability of graphite and binder materials (decomposition, compositional determination, solvent drying) for safer and longer lasting batteries.

Manufacturing anodes involve slurries of graphite and binders. Rheology enables engineers to produce consistent slurry viscosities that result in uniform coatings leading to high performing and safer batteries.

Material: Active material
Material Examples: Graphene, Graphite, Silicone

Instruments & Test Parameters
Discovery DSC

Reduction of graphene oxide

Heat capacity

Discovery SDT
Decomposition analysis

Reduction of graphene oxide

Evolved gas analysis, TGA-MS, TGA-FTIR, TGA-GCMS

Discovery TGA
Decomposition analysis

Composition determination

Slurry drying

  • Drying temperature
  • Drying kinetics
Discovery Hybrid Rheometer
Mixing for slurry formation

  • Viscosity (shear thinning index)

Slurry storage with minimal settling / aggregation

  • Viscosity (zero shear viscosity)
  • Viscoelasticity

Pumpability, transport of slurry

  • Yield stress
  • Viscoelasticity

Electrode coating

  • Viscosity (shear thinning index)
  • Thixotropy

Optimization of coat weight / coat thickness

  • Viscosity (thixotropy)
Material: Binder/Additive
Material Examples: Carboxymethyl Cellulose (CMC), Styrene-Butadiene Rubber (SBR)

Instruments & Test Parameters
Discovery DSC

Quality control

  • Melting temperature (Tm)
  • Heat of fusion
  • Glass transition (Tg)
Discovery TGA

Thermal stability

  • Decomposition temperature

Composition determination

  • Binder/additive contents
Battery Cell
Calendar life and cycle-life of lithium-ion battery cells can depend on secondary reactions occurring between the electrodes and within the electrolyte. Isothermal microcalorimetry enables researchers to gain understanding of secondary reactions by measuring very small heat flow for safer and longer-lasting batteries.
Material: Whole Cell

Instruments & Test Parameters
Isothermal Microcalorimetry (IMC)

Cell performance ranking

Lifetime prediction

Heat management

Phase change and first cycle reactions

Battery Casing
Battery casings must withstand a wide range of temperatures during normal operation. Thermal gravimetric analysis (TGA) provides insights into thermal stability (degradation, oxidation) and dynamic mechanical analyzers (DMA) deliver insight into material mechanical properties.
Material: Polymer or metal

Instruments & Test Parameters
Discovery TGA

Thermal stability

  • Degradation temperature
  • Oxidation (metal)
Mechanical Test Load Frames

Material strength

  • Young’s modulus, yield strength, ultimate strength, elongation at break
  • Fatigue and durability, S-N curves
  • Strength vs. temperature

Final assembly strength

  • Flexural, bending or crush failure points
  • Fatigue and durability, S-N curves
  • Strength vs temperature
Discovery DMA

Mechanical properties of materials

  • Storage modulus, loss modulus, tan delta
  • Glass transition (Tg)

Batch-to-batch material repeatability

  • Glass transition (Tg)
  • Storage modulus, loss modulus, tan delta

Characterization of mechanical anisotropy

  • Storage modulus, loss modulus, tan delta

Application Examples

TGA thermal stability and compositional amount of anode materials

Electrodes require binders and additives to ensure proper adhesion to the metal collector. For the anode electrode, carboxymethyl cellulose (CMC) is a common binder and styrenebutadiene rubber (SBR) is a common additive that provides flexibility. TGA measures the thermal degradation temperatures and composition of CMC, SBR and graphite active anode materials. The high sensitivity Tru-Mass Balance of the Discovery TGA ensures accurate measurement of each component in the electrode. For this test, the sample was loaded directly on a TGA platinum pan without any sample preparation.

TGA curve of graphite anode in a TA Instruments Discovery TGA. The sample was heated to 1000 ˚C at 10 ˚C/min under inert conditions. The graphite anode materials contained CMC and SBR as binder and additive respectively. Thermogravimetric analysis shows that the graphite anode material was stable until approximately 288 and 417 ˚C resulting in small weight percent losses of 0.8% and 3.6%, respectively related to the CMC and SBR content.
Conclusion:

TGA measured the thermal stability and quantified the amount of binder and additive in the anode electrode. TGA can also provide quality control of the materials to ensure the same amount of active material, binder and additive are in each batch of the electrode. Insufficient amounts of binder will affect the active anode material’s adhesion to the metal collector; too much binder will reduce the active material’s content and affect the electrochemical reaction. Optimization of binder/additive ratios is essential for optimal battery performance and improvement of battery life.

Rheology to determine battery slurry viscosity

Electrode slurries are complex, non-Newtonian fluids that are a mixture of solid particles and polymeric binder in a solvent. They are subjected to a wide range of changing shear deformation rates at different stages of the electrode manufacturing process. The ideal slurry has a low viscosity for optimum mixing and coating (high shear rates), but a high enough viscosity for good levelling during drying and to minimize particle settling and agglomeration during storage (low shear rates).

The figure to the right shows the viscosity of an anode slurry under different shear rates on a TA Instruments Discovery Hybrid Rheometer (DHR). The sample was mixed before loading on the rheometer. The measurements were performed from 0.01 to 1000 s-1 at 25˚C using a 40mm parallel plate with solvent trap.

The data in the figure shows the viscosity of the slurry as measured over 5 decades of shear rates. The Advanced Drag Cup Motor technology of the DHR allows for the measurement to be performed in less than 20 minutes with a direct readout of the viscosity. Initially, under low shear rates which simulate storage conditions, the viscosity is high to prevent settling and reduce the energy of mixing prior to coating. The low torque sensitivity of the DHR ensures accurate, repeatable measurements in this low shear rate region, providing greater confidence in the data.

As the shear rate increases, the slurry exhibits a typical shear-thinning behavior where the viscosity of the slurry decreases by almost a decade. This is important to ensure that the slurries can be mixed efficiently and have the right amount of flowability when applied onto the substrate.

The slurry rheology continues to play a critical role in the film-formation stage (a low shear rate process) where the rate of viscosity increase (known as thixotropy) ensures the levelling of the coatings. This is especially critical when electrodes with high coat weight for higher energy density are desired.

Viscosity vs shear rate of an LIB electrode slurry over 5 decades of shear rates. The slurry exhibits shear-thinning behavior with the viscosity decreasing with increasing shear rate.
Conclusion:

Rheological measurements provide researchers with a reliable analytical tool for developing new formulations with improved performance and manufacturability. Understanding and controlling the slurry rheology helps in not only choosing an appropriate manufacturing process (roll-to-roll coating, slot-die coating, etc.) but also maximizes the production output to produce consistent, defect-free films of uniform coat weight and good contact with the electrode. These measurements can be used both in R&D and manufacturing settings owing to the DHR’s highly intuitive user-interface that reduces operator training times and increases productivity.

TMA thermal expansion of battery separator to identify the orientation effect

In a lithium-ion battery, the separator, a permeable microporous membrane, is an essential component that prevents physical contact between the two electrodes, thereby preventing short circuits, but still allowing lithium ion transfer, which is essential to the function of the battery. The Discovery TMA 450 can measure the dimension change and the potential failure temperature of the separator. The high sensitivity of the dimension change measurement can detect both thermal expansion and shrinkage in different separator orientations. The sample was cut into 24 mm length and 2 mm uniform width and loaded on film and fiber probe. The temperature was ramped at 3˚C/min from -70˚C to 200˚C under nitrogen purge.

TMA measurements of the dimension change and thermal expansion coefficient of the separator in two different directions with TMA 450 film/fiber probe were recorded. The separator in the X-direction showed thermal shrinkage onset at 136˚C while no thermal shrinkage was observed in the Y-direction. The CTE value in X-direction is 22.39 μm/m˚C while CTE value in Y-direction is 107 μm/m˚C. The significant difference measured in the thermal expansion coefficient in the two directions indicates an orientation effect in the separator.
Conclusion:

The TMA 450 measured the thermal expansion of the separator and identified an orientation effect in both the X and Y directions. It is important to understand the orientation effect to prevent undesired expansion or shrinkage that can lead to mechanical failure in batteries.

What Thermal Events Lead to Thermal Runaway?

While there are remaining questions about the thermal runaway process in batteries, current understanding suggests that it is initiated by the following series of events.  The exothermic reactions leading to thermal runaway interact destructively with every inner component of a Lithium-Ion Battery (LIB) as the battery’s temperature continues to rise; some elements are early casualties while most directly speed up heat accumulation as they fail.

The first component to begin breaking down is the Solid-Electrolyte Interphase (SEI), which generally starts around 80-120°C (176-248°F). At this point, Thermal Runaway can be slowed, but is no longer reversible once the anode is exposed to the electrolyte. Exothermic reactions occurring at the reactive anode surface add more heat into the system until it reaches the next critical temperatures.

The separator is the next component affected, and it fails in two stages. Around 120-150°C (248-302°F) the separator begins to melt and causes a small short-circuit, followed by a more serious internal short circuit when the separator breaks up near 220-250°C (428-482°F).

The following reactions happen quickly and directly following the previous temperature range; the cathode material, binder, and electrolyte all begin decomposition, which drastically raises the temperature of the battery cell to temperatures about 800°C (1472°F). These reactions have gas products which increase the pressure within the LIB.

Aside from quick heat generation, the cathodic reactions have a disastrous byproduct of oxygen which is flammable. Depending on the exact conditions, the immediate result is either “Heat + Oxygen = Fire” or “Heat + Gas = Rupture/Explosion”. Of course, not all materials are made equal and may fall high or low on these ranges – or even outside of these temperatures in the future – so it is essential to make the safest possible choice of materials for a given battery with proper testing.

TGA Thermogram Highlighting Thermal Instability of Graphite Anode Material

To avoid thermal runaway and select battery materials with optimal heat tolerances, battery researchers turn to Differential Scanning Calorimetry (DSC) and Thermogravimetric Analysis (TGA):

DSC: DSC measures the heat flow into or out of a material as a function of temperature or time. Phase changes interrupt the heat capacity relationship between temperature change and heat absorbed or released and are visible on graph output. It allows for testing in a variety of conditions ranging from safe operating temperature to thermal abuse.

TGA: TGA measures mass of a sample as a function of temperature or time. Generally speaking, a more thermally stable material can reach a higher temperature before any change in mass occurs.

Answer the following questions with results from your DSC:
  • The material’s melting temperature, Tm
  • The material’s glass transition temperature, Tg
  • The lowest phase change temperature of various materials that comprise the battery.
Answer the following questions with results from your TGA:
  • The temperature at which a material begins decomposition.
  • The amount of sample mass lost to thermal or oxidative decomposition at a given temperature.
  • The rate of decomposition reactions (both oxidative and thermally induced) at a given temperature.
  • The maximum thermally stable temperature of the various materials that comprise the battery.



SDT of Lithium Carbonate cathode precursor material

Lithium Carbonate (Li2CO3) is often used as a precursor for cathode materials in lithium-ion batteries. High temperature sintering processes are required, and the sintering temperature will impact the lithium salt residue, thus affecting the battery efficiency and cycle performance. The high-temperature thermal stability and phase transitions can be measured by the Discovery SDT 650. Evolved gas analysis can be used to identify off-gases with direct measurement during heating of the SDT. The sample was loaded directly on SDT alumina pan without any additional sample preparation.

Conclusion:

The SDT measured the thermal stability and melt phase transition of Li2CO3. Mass spectrometry detected CO2 as an evolved gas during the heating process. A residue of approximately 35% was recorded. Knowing that some Li2CO3 remains unreacted during cathode production can influence battery performance.

Figure 3. SDT measurement of both weight and heat flow signals of Li2CO3 from 25˚C to 1000˚C at 10˚C/min heating ramp. The measured onset of melting is detected at 724˚C with a heat of fusion of 490 J/g. The weight signal indicates a small amount of weight loss during melting which has been seen by other researchers as well. Mass spectrometer data is also overlayed in the graph and indicates that CO2 (m/z 44) is released during the melting and decomposition.

How does rheology help produce uniform battery slurry coatings?

During the creation of a Lithium-Ion Battery (LIB), preparing the electrode involves the creation of an “electrode slurry”: a suspension of solid conductive particles in a solvent medium, along with polymer binders and active components. The properties of this slurry are essential to the quality of a life, affecting performance and lifetime. The primary conflict of creating an effective electrode slurry is that its viscosity and viscoelasticity must be in a narrow range to be high enough for some steps and low enough for others, with the end goal of a homogenous product.

During initial mixing, the viscosity must be low enough to be evenly blended. After mixing, the viscosity must be high enough for the conductive solids to remain evenly suspended and avoid settling. Additionally, the slurry must be able to coat evenly, remain level during drying, and have sufficient adhesion to avoid delamination. Non-Newtonian fluids are the best solution, as they do not have a single constant measurement for viscosity.

Rheology provides a powerful technique for analyzing viscosity and viscoelasticity performance for battery slurries

Generally, slurries that exhibit high amounts of shear-thinning, which become less viscous under shear strain, are advantageous for these applications. When left alone, the viscosity is sufficient to maintain homogeneity in suspension, but mixes well and spreads thinly under sufficient force. Typically, a viscometer is a useful tool for measuring viscosity and characterizing “fluid” materials, but it won’t be helpful for materials that have more than one value. Unlike a viscometer, rheometers can measure a range of viscosity values during shear thinning or shear thickening for Non-Newtonian substances, so they are critical to characterizing these slurries. Additionally, built-in attachments allow for easy testing in various temperature, pressure, and humidity conditions, which can help simulate working environments.

Aside from the electrode slurry itself, another significant impact on its flow behavior is the methods and equipment used for fluid application. The shape of the nozzle and power supplied by the pump will directly affect the amount of stress the pseudoplastic slurry is under – and by result, its fluid properties during coating. The transient creep properties of a material are also critical to the deformation versus levelness of a coating, especially while drying. Any material shrinkage will also significantly affect the appearance of the slurry after it’s set.

Discovery Hybrid Rheometer: The Discovery Hybrid Rheometer measures the flow response of a material in response to applied force by measuring the deformation relative to a controlled strain. The “Hybrid” nature of the DHR allows it to measure typical force values as well as stress and strain control measurements for an accurate and streamlined process. The DHR also has a wide array of Smart Swap™ accessories that greatly expand the possible scope of study.

Find the following properties with results from your DHR:
  • The material’s viscosity, dependent to force
  • The material’s viscoelasticity: non-linear time-dependent relationship between force and deformation.
  • The material’s stress-strain curve and associated factors
  • The material’s yield stress: the stress at which permanent deformation begins to occur, which includes the undesirable settling of conductive particles towards the bottom of the electrode.
  • The material’s thixotropic behavior: to what extent the material will recover its viscosity during rest after being subjected to shear-thinning force
  • The ideal nozzle geometry and pump power for coating
